10/3/22 Pin System Motor Mounts

Colin Szeto

The front vector motor mounts were absolutely brutal to deploy during lake testing. This was due to the 12 screws that we had to loosen to lower each of the t500 motors mounts into the water. This was even harder as we had to stand on the back of the trailer during this process and at the end of the day lift the motor mounts in very dark lighting.



The video illustrates the order of operations of:

  • Remove pins
  • Remove motor mount, shift downwards
  • Insert pins



    • Clearance of the brackets during transport

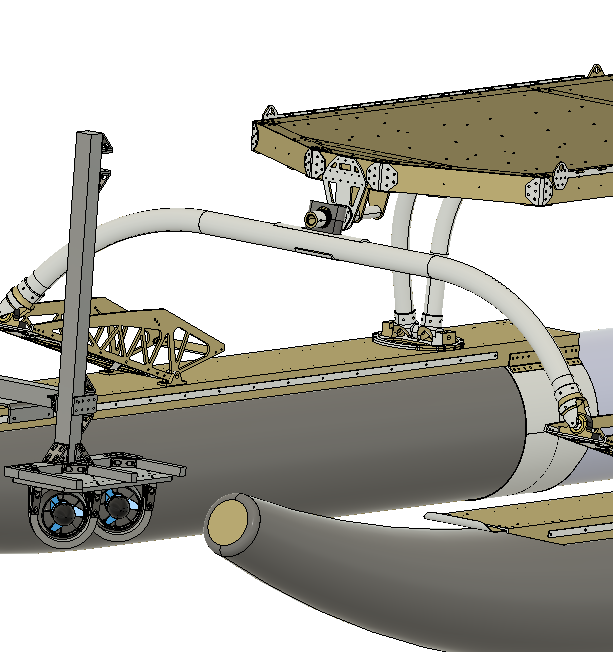

    Alternate view of the t500 motor mounts raised
