4/9/22 Measuring LEX-96 for Final Dimensions

Apr 9

Colin Szeto

boat dimensions

Red length: 58 inches

Green length: 27 inches

Website to boat here

draw brackets on joints

Note on the CAD model, assume all joints will have angle brackets in the corners

Useful part length calculator, will not have to use manual here

Initial sketch of the 8020 aluminum extrusion structure

Initial sketch of the 8020 aluminum extrusion structure to secure the motors onto the boat

Initial thoughts of quick deploy hinged mechanism

Side view Initial thoughts of quick deploy hinged mechanism

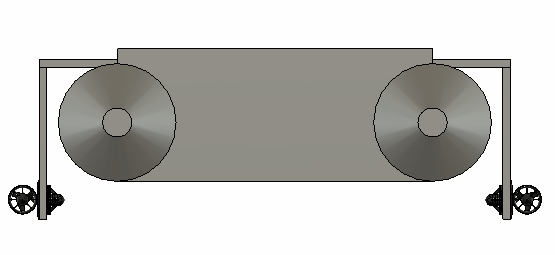

ISO metric and side view of quick deploy hinged mechanism

View down the length of the boat:82 in for tip to tail (forward to aft of boat)

boat

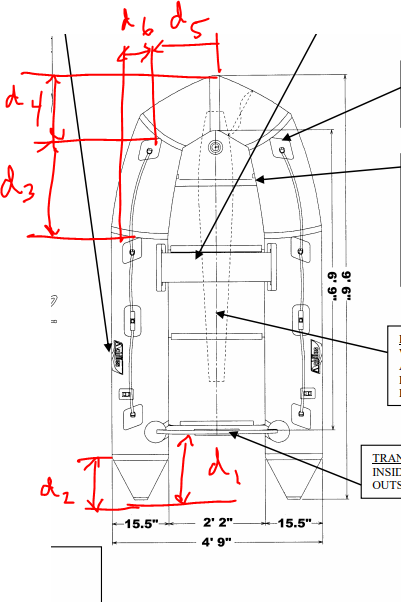

Dimensions correspond with the drawn on dimensions in the top view of the boat

dimensions of boat

All below measurements are in inches:

D1 = 20

D2 =16

D3 = 16 OL 18 (outer length), IL 15 (inner length)

D4 = 24

D5 = 26

D6 = 12Views of the motor mounting frame on boat CAD:

Back view

top view top view

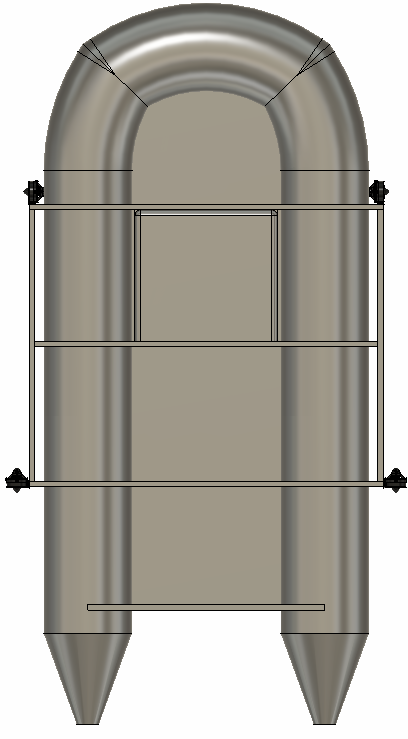

Back isometric view

Side view
