6/17/22 Motor Savers

Colin Szeto

Front view of motor saver for t500 Blue Robotics thruster

Isometric view

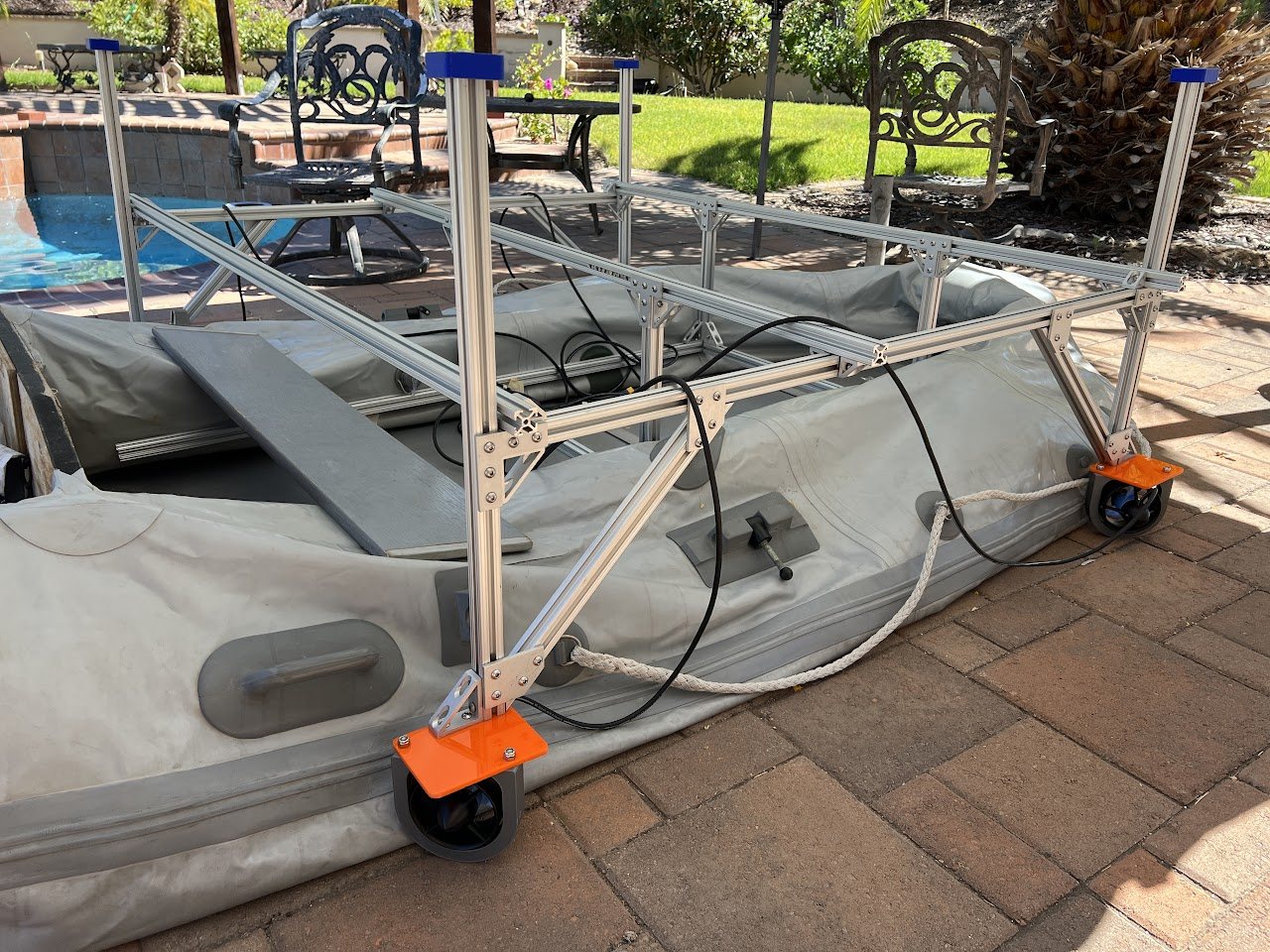

Motor savers mounted onto interface plates

Currently, the motors are mounted lower than the bottom frame. When mounting the frame onto the boat the motors are forced into the ground. This was due to the addition of the 45-degree bars.
