7/3/22 Designing the Translation System for the HSI camera mount v3.5

Written By Rohit



Colin Szeto

Objective: Utilize the servo block as a mounting solution for the servo. Using servo programmer here to enable movement of the HSI camera cart without programming

In this design, the cheese slope was redesigned to mount 3 pieces to support a vectored continuous rotation servo onto the Camera Cart.

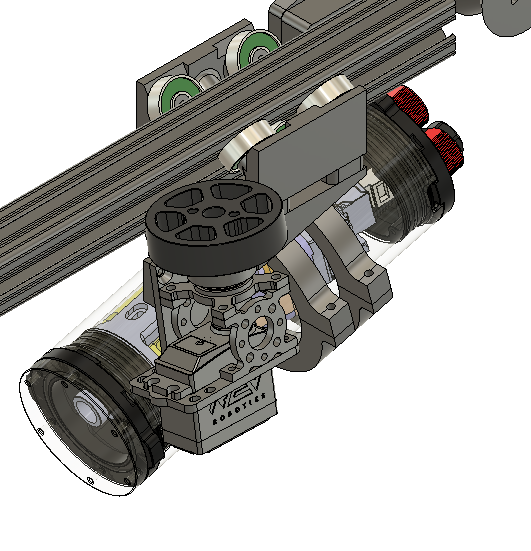

Isometric View

Top View

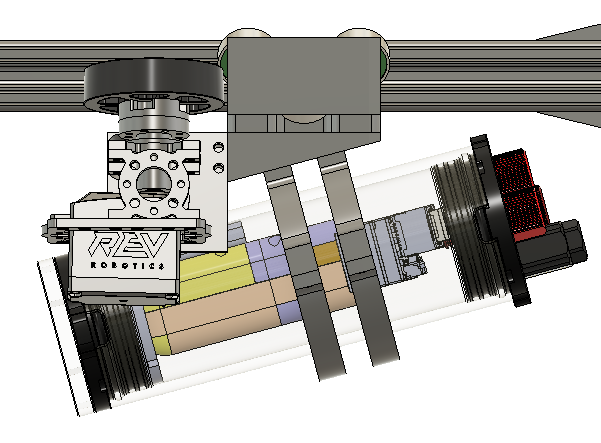

Front View

Side View
Assembled HSI cart 3.5

Assembled 3d printed parts of the HSI cart all together

Mount rolling freely on the rail here
