7/3/22 Fabrication of Pivot Design

Colin Szeto

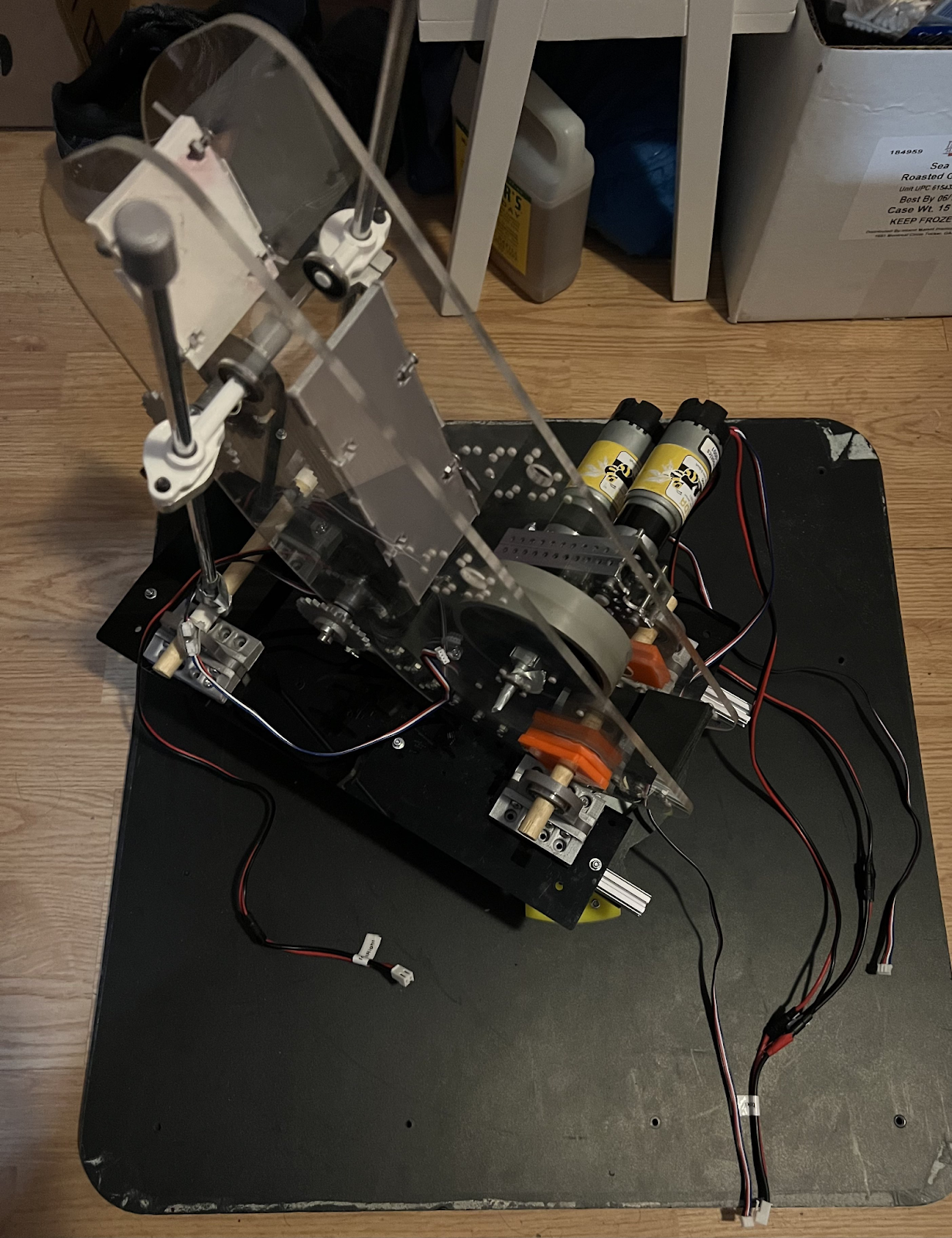

The team was able to utilize past land vehicle design game pieces from FIRST Tech Challenge Relic Recovery

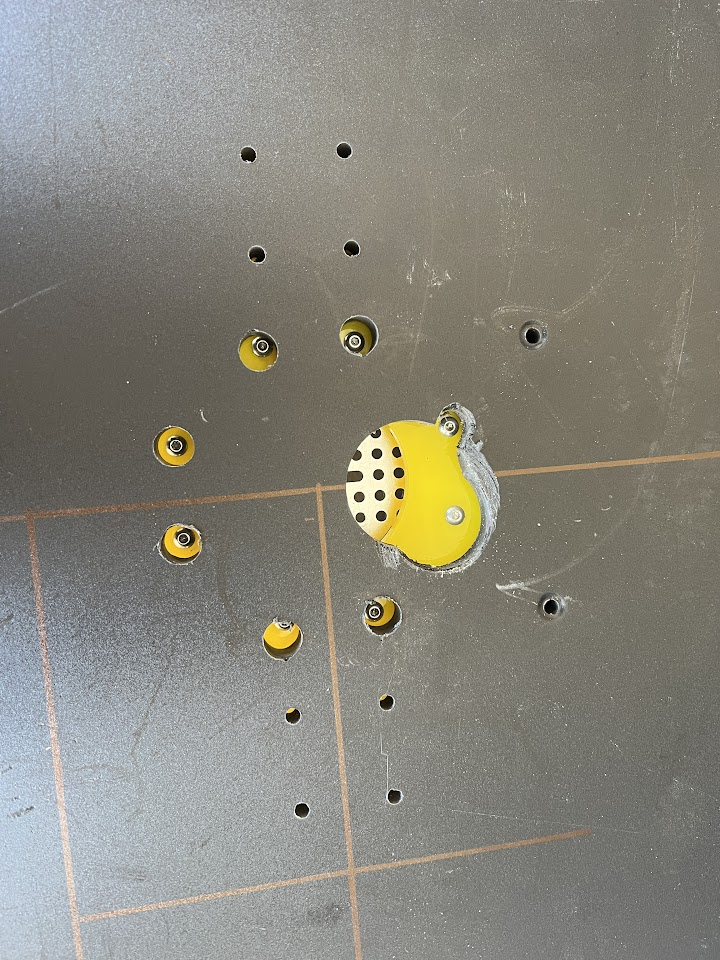

I printed out a 1:1 sheet of the bottom of the racquet ball turret plate.




This template was used as template to center punch and drill the interface holes the plate and the racquet ball launcher.



Final through holes
