7/9/22 Perception Mount Design and Build

Jul 9

Written By Rohit

Colin Szeto

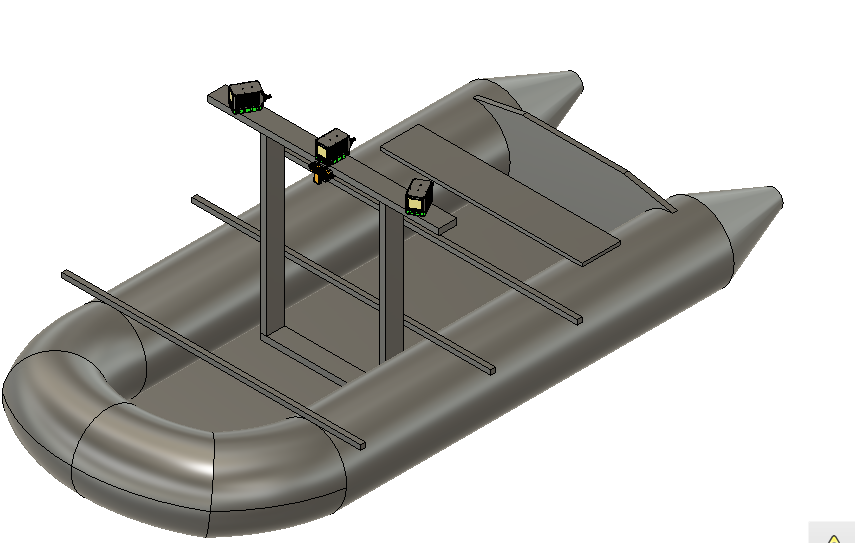

ISO view 8020 lidar mounting

Initial design required many specific 80/20 cut lengths. No obvious way to remove perception mount from the motor frame for transportation

ISO view wood lidar mounting

Final design - using on hand 2x4 wood pieces. Strapped onto the motor mounting frame

victor assembly wood lidar mount

Construction of the perception mount. Utilized extra 80/20 corners bracket for the joinery of the ends of the frame

Rohit
