8/13/22 Dimensioning out the Shipping Crate

Colin Szeto

Plywood is good enough for the competition. We can consider purchasing the plywood at Australia

Outer dimensions of the box

Length – 123” (3.1242 meters)

Width – 54” (1.3716 meters)

Height – 62” (1.5748 meters)

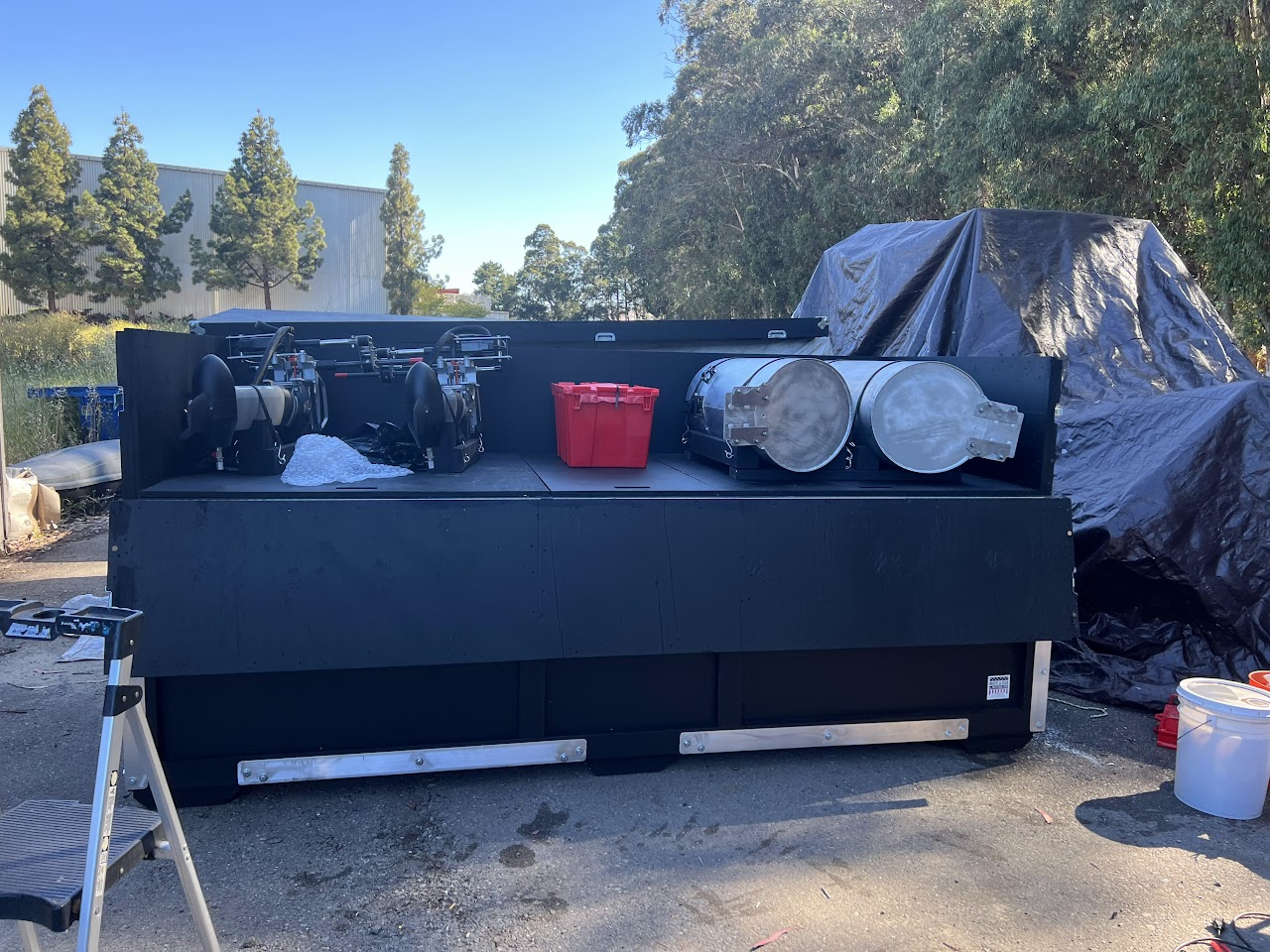

Here is an example of the crate with the motor holders as well as the pontoons of the upper portion of the shipping box

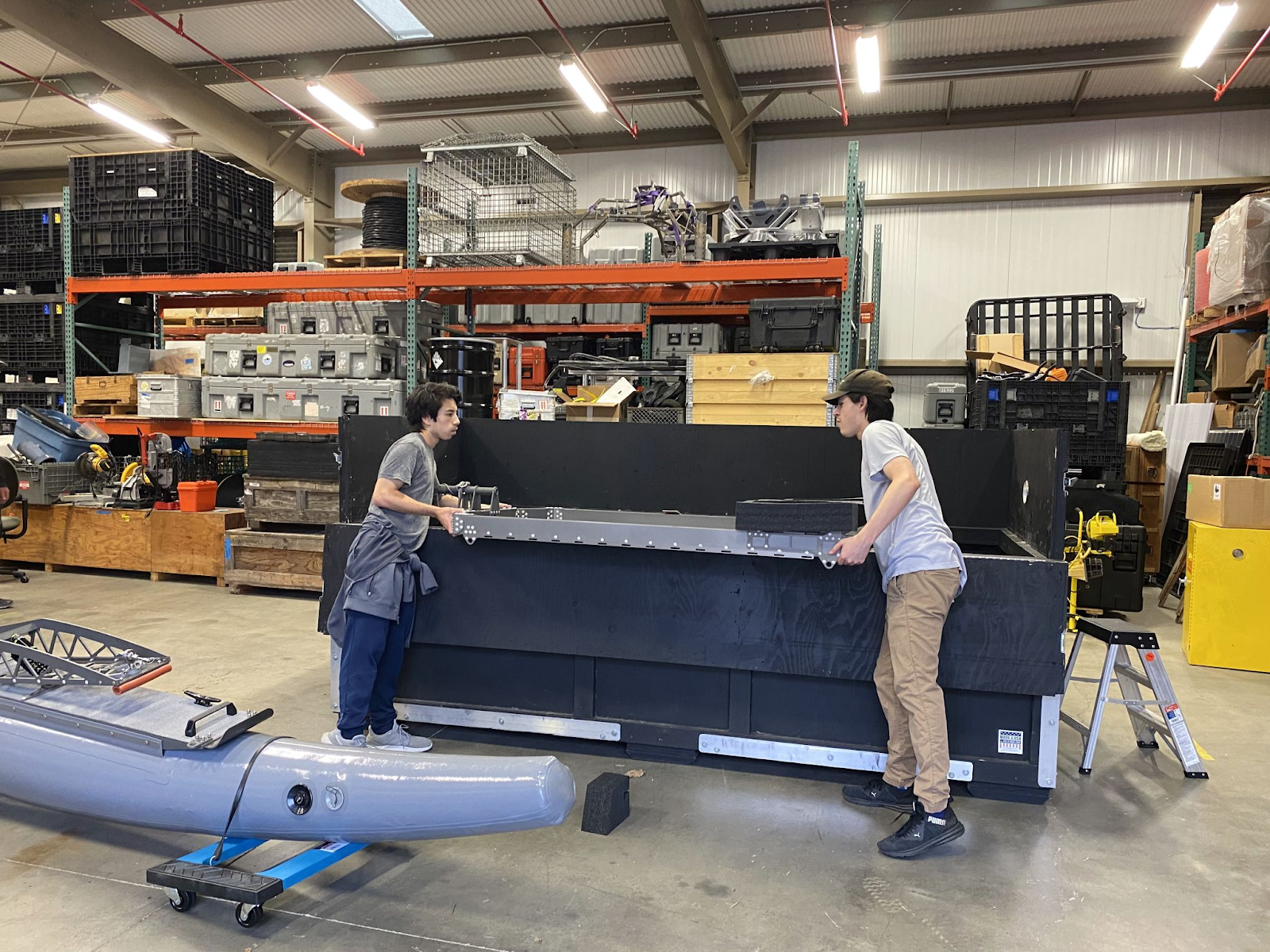

The box has a top and a bottom, here are two students lifting out the top platform of the WAM-V from the lower position of the box


here  is reference for the above photo

This is a possible placement on top of the skis


This volume on the skis 33 in by 6 in by 48 in

Teal and yellow: pontoons

salmon pink and orange: area for the drone platform

Green: thruster location


(height, width, depth)

Orange dimensions: ~6 in 33in ~48in

salmon pink dimensions: ~17 in ~28in ~48 in

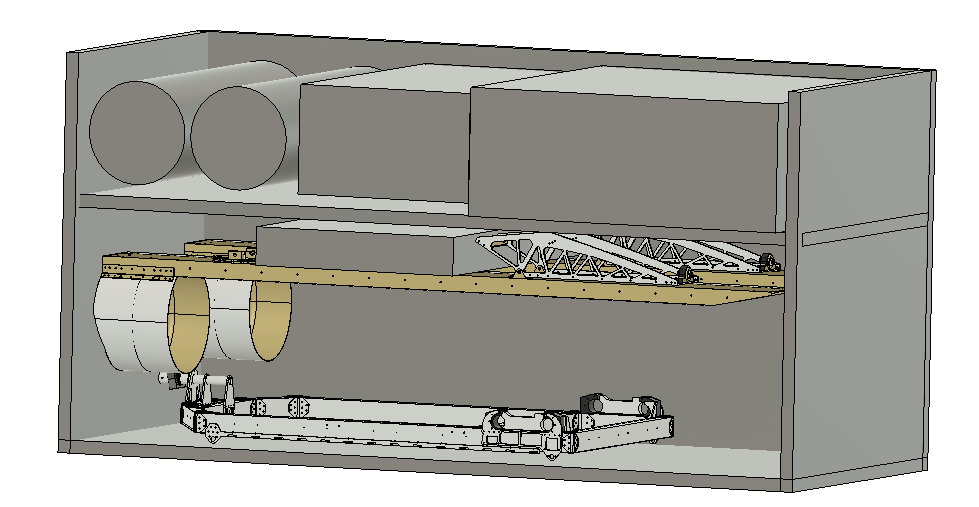

Rough dimensions of the wam-v shipping container with the
