8/28/22 Initial design of the Drone Landing Plate



Colin Szeto

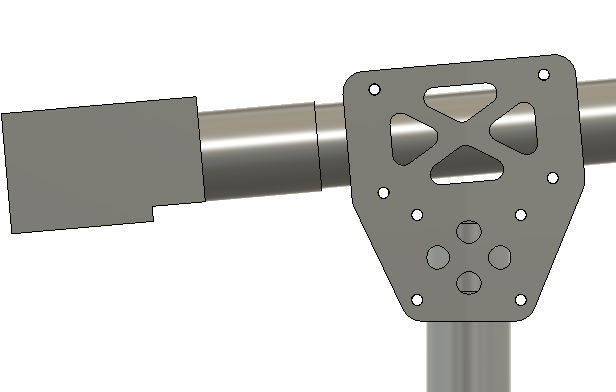

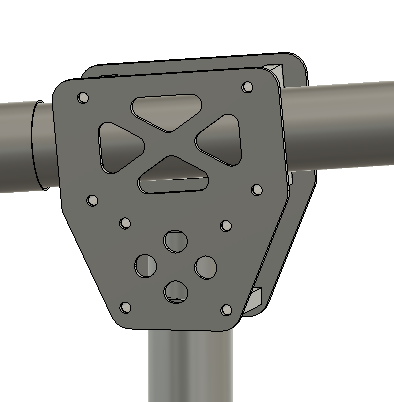

The objective is to sandwich the tube clamps between two carbon fiber plates. In this design, the vertical plates constrain 4 tube clamps together to adapt from the motor arm titled up 15 degrees from horizontal to a tube vertical to the floor.
