8/30/22 Fabricating Drone Landing Plates and Assembly



Colin Szeto

Utilized desktop cnc, did not use air compressor and water mixture, the carbon fiber dust got everywhere







Edges of the parts before wet sanding









Edges after wet sanding

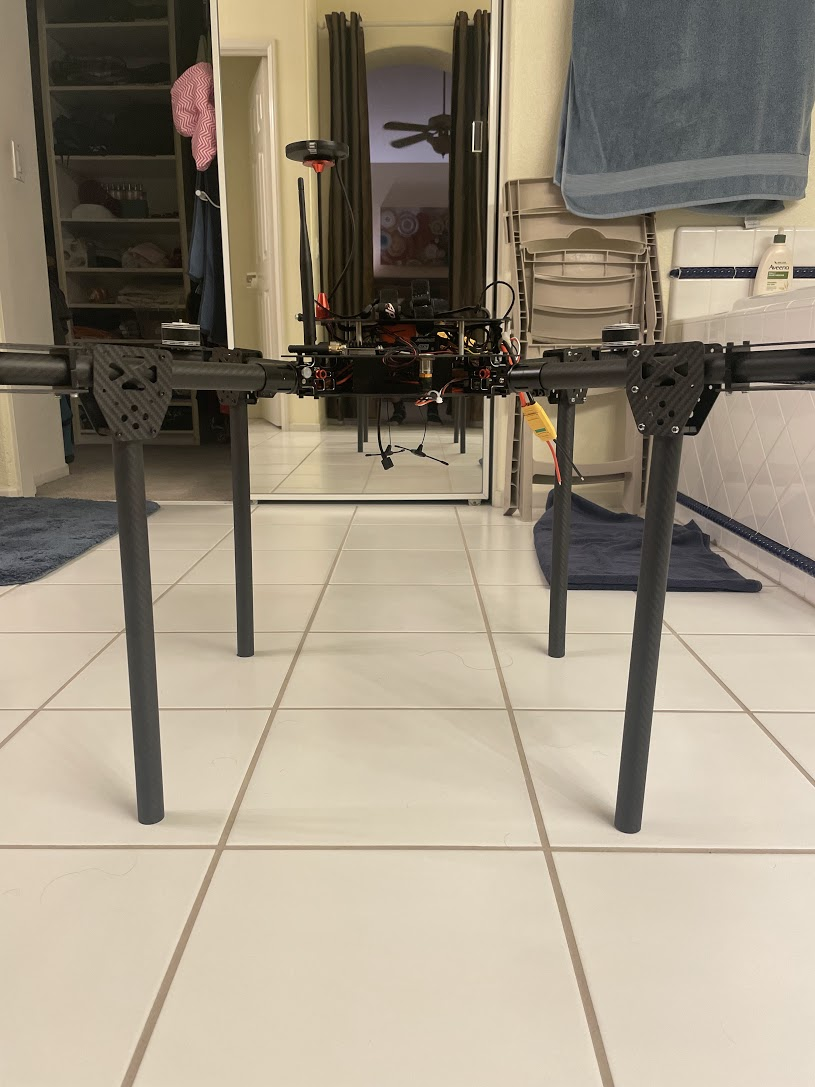

Front view of the drone landing plates connected to the legs. Utilizing 2 clamps instead of the intended 4 clamps. This decision was made as only had 8 clamps on hand. Demonstrated that landing plates only required two clamps rather than 4 as there was more than enough clamping force
