9/11/22 Risk Reduction
Colin Szeto
Objective was to verify the feasibility of the assembly and dimensions of the motor guard around the
physical motor before laser cutting more expensive material. With no easy access to a laser cutter,
representations of the different motor guard components were laid out in 8.5 by 11 sectors to be printed
out and stitched together for 1:1 scale templates. These templates were used to guide cutting out
the designs from foam core material.

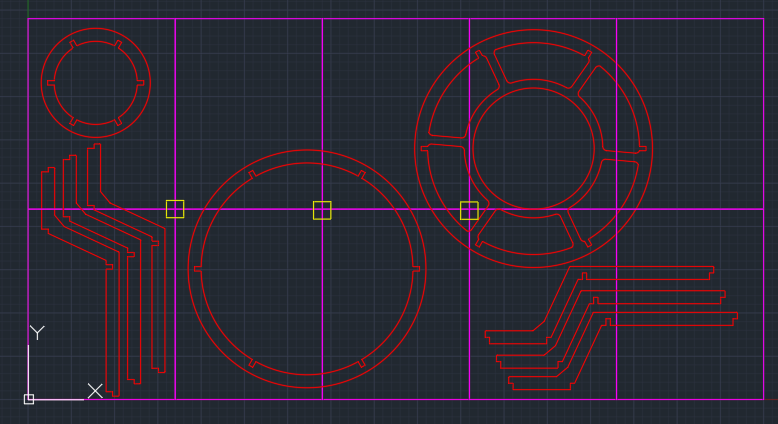

This layout of the motor guard components was created in AutoCad. The red line represented the
outline of the parts to be cut, the purple lines represented the edges of the paper, the yellow boxes
were for page alignment. The team was unable to print out each section individually.

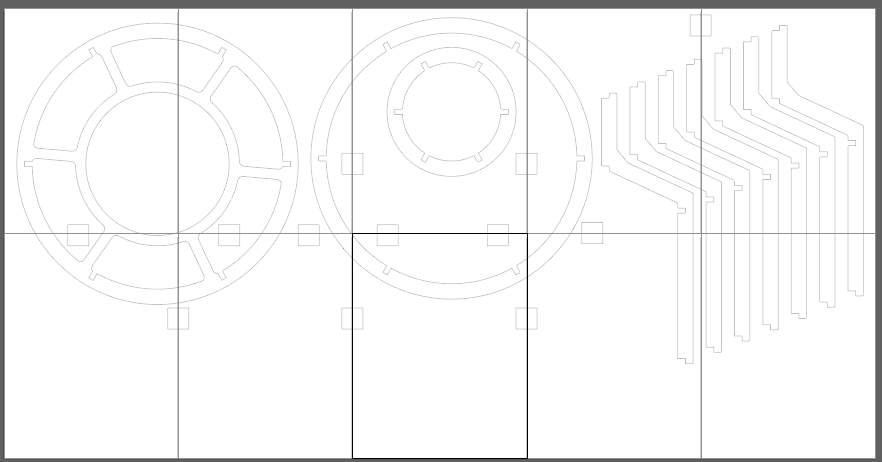

The layout of the parts was replicated in Adobe Illustrator. Artboards were placed next to one another.
This enabled splitting the design to be printed out on 8.5 by 11 sheets of paper.

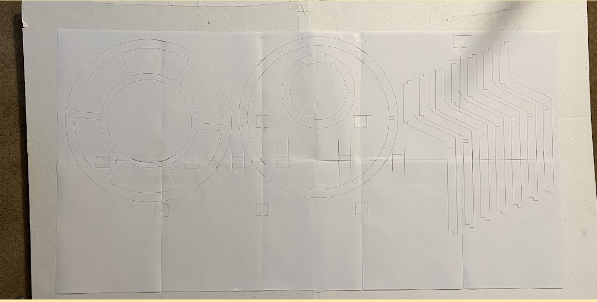

8.5 by 11 pieces of paper taped together
The foam core was roughed out to the general dimensions of the design to enable multiple people
working in parallel.
Zoomed into the capping ring.
Zoomed into the intermediate ring.
In this template there are 6 pieces of paper stitched together. The template began to fall apart when we
started to cut away the material.
For circular designs we will need to center the circles on the intersection of 4 pieces of paper.
This reduces amount of joints of paper and provides a more robust template to cut around
The negative space of the parts that were not required to be kept were darkened. This communicated
essential features versus alignment features of the individual pieces of paper
Here was all the material that needed to be removed to hit the desired geometries

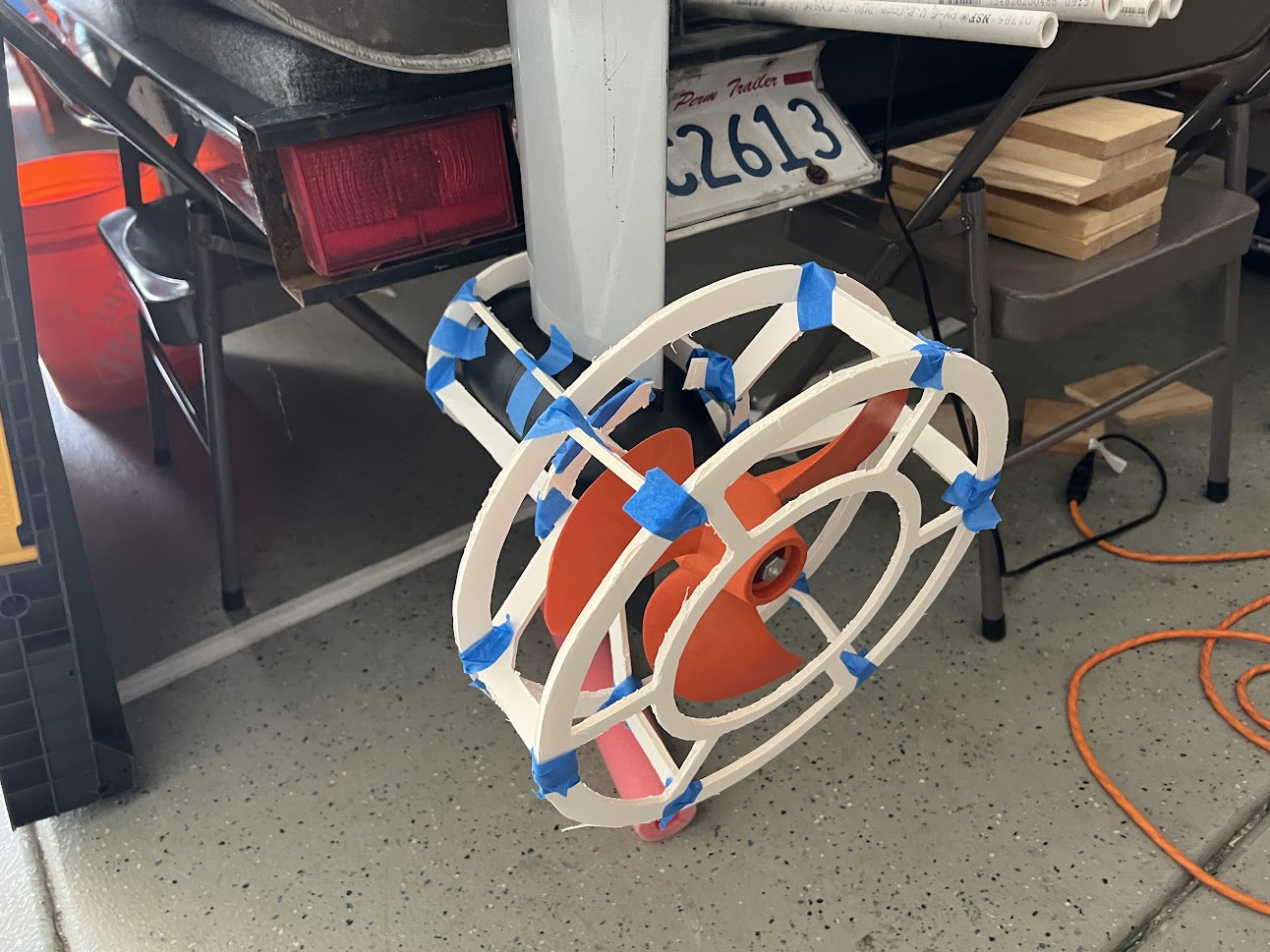

Here was the final installation of the risk reduction model onto the motor
Isometric view of the foamcore motor guard
Lessons learned from the risk reduction:
The motor geometry is curved, this caused deflection in material
The small inner ring was unable to be installed in one piece. Current installation required the inner ring to be cut into two pieces to be installed into the assembly
The two smaller ring distance needed to be shorted to reduce the forward and backwards slop due to the vertical airfoil not adequately supported
