9/16/22 Using Technical Drawing References

Sep 16

Written By Rohit

Colin Szeto

revolve function to create parts

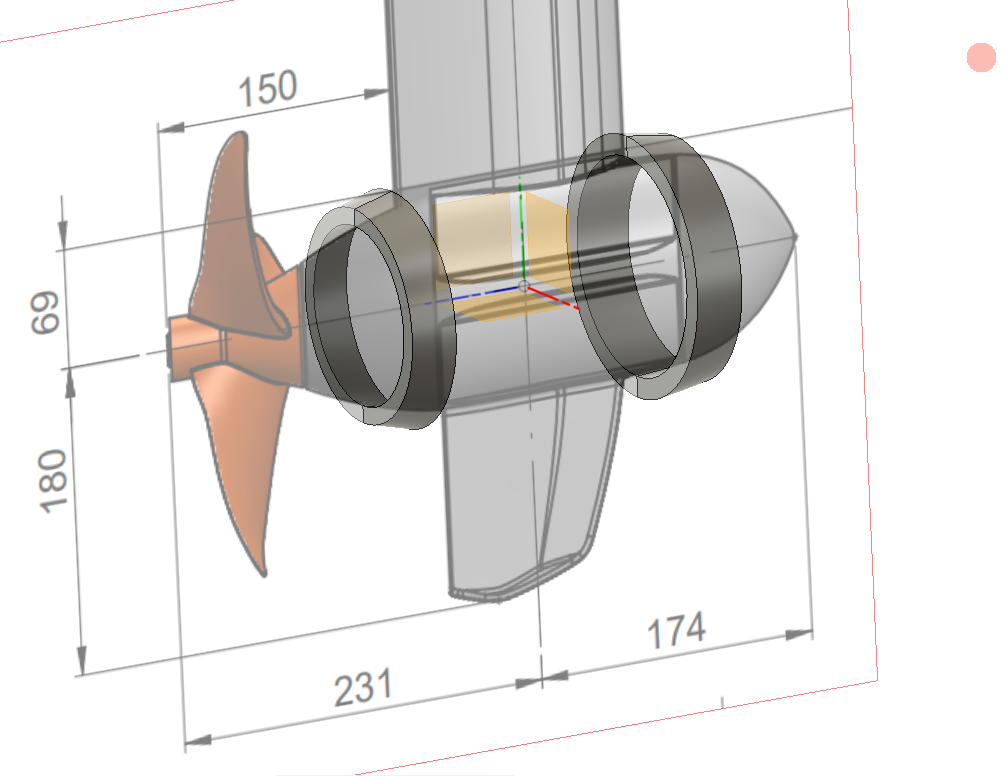

Attempting to create the ring clamps through scaling the technical drawing 1:1 scale in CAD. Utilized revolve functionality.

3d printing test parts

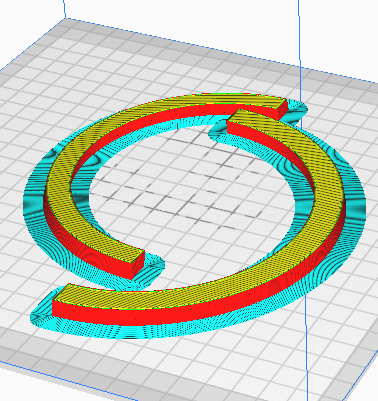

Printed out test clamps to verify geometries
