9/29/22 Laser Cutting out RIngs

 Colin Szeto

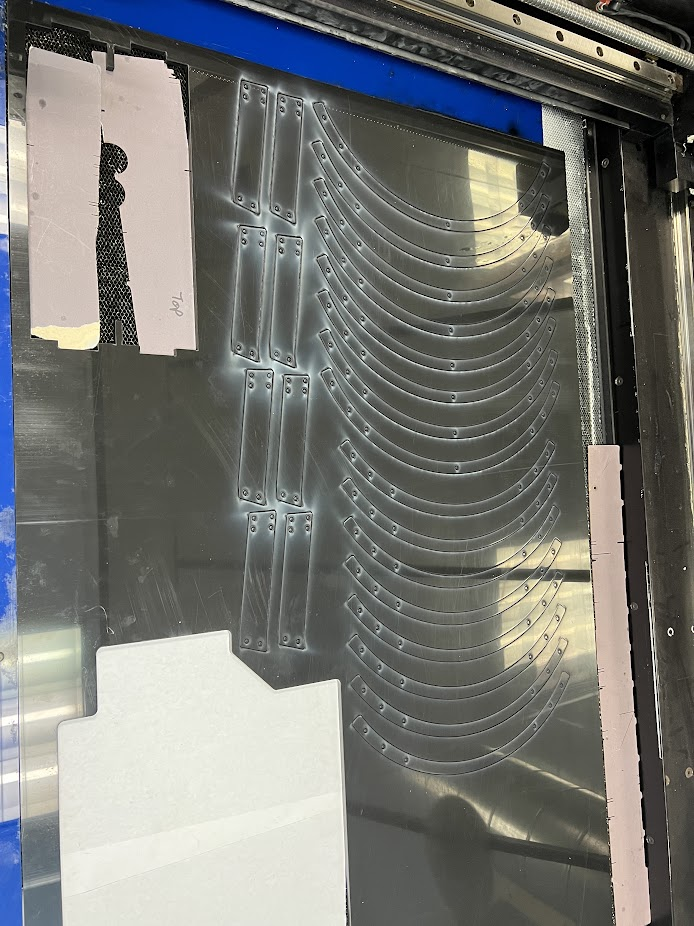

Photo taken after laser cutting the 0.267in acetal on the design studio laser cutter

On the back of the sheet note that the laser did not pass all the way through the material

Not pictured but utilized a jigsaw to separate out the components from the stock. We were not able to clear the screw holes.


We learned that it may have been a better idea to utilize a flat head or a hand held dremel to separate the components from the stock more effectively. This would have provided less individual scraps compared to cutting out the pieces with a jigsaw

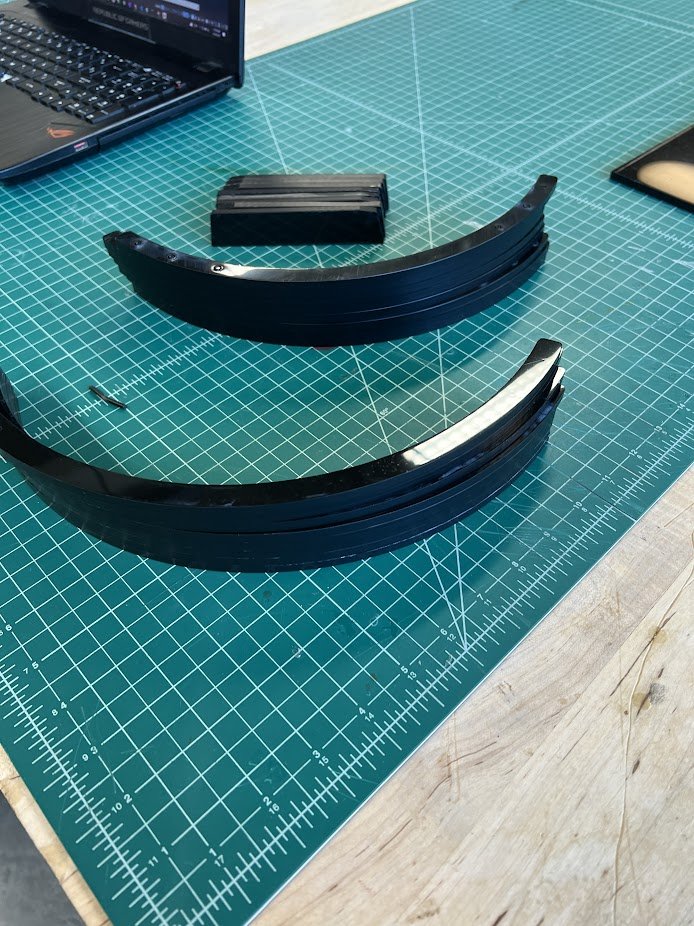

These were all of the reclaimed usable components after separating the parts form the stock
