5/10/22 Cutting carbon fiber plates on a CNC router

May 10

Colin Szeto

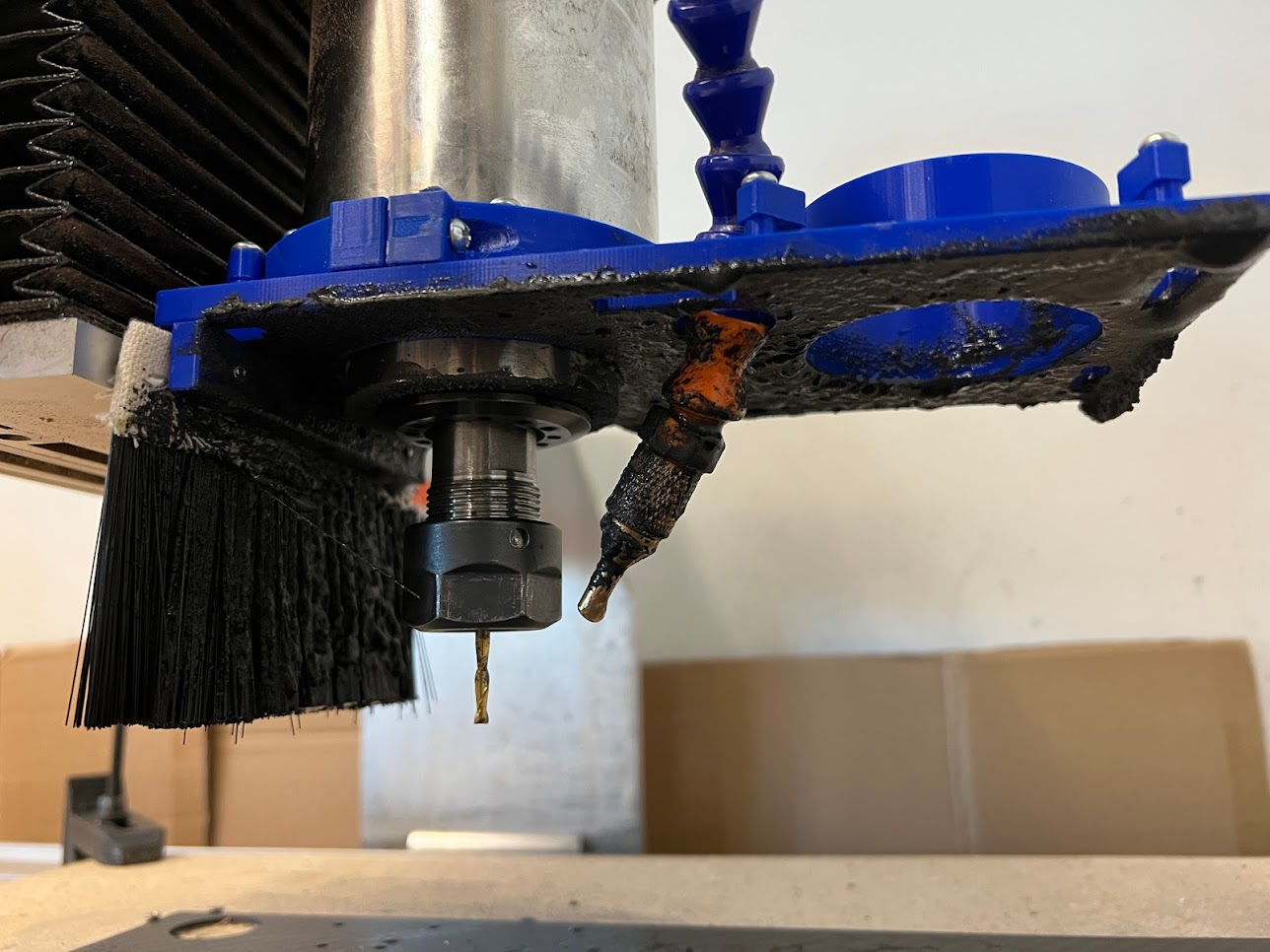

Dust shoe before the cut dust shoe after cut

Was able to effectively utilize the dust shoe. The top image represents before. The bottom image represents after. Although I needed to use a secondary vacuum to evacuate all of the water, the brushes were able to catch the water and the carbon fiber particles. Needed to wash the brushes after usage.

vertical spacer on carbon fiber plate

Can see the vertical walls not able to free fit into the plate.

carbon fiber plate on drill press

Tried to add tolerance by lengthening the slots. Yet this still didn’t work.

carbon fiber spacer in vice

Slots for vertical plates are a bit too small had to file down the vertical walls like a blade this would be compromising rigidity need to edit the slots to be a bit wider in CAD

completed spacer, mid plate, motor mounts

The completed plates
