5/27/22 prototyping motorized drone landing platform




Colin Szeto

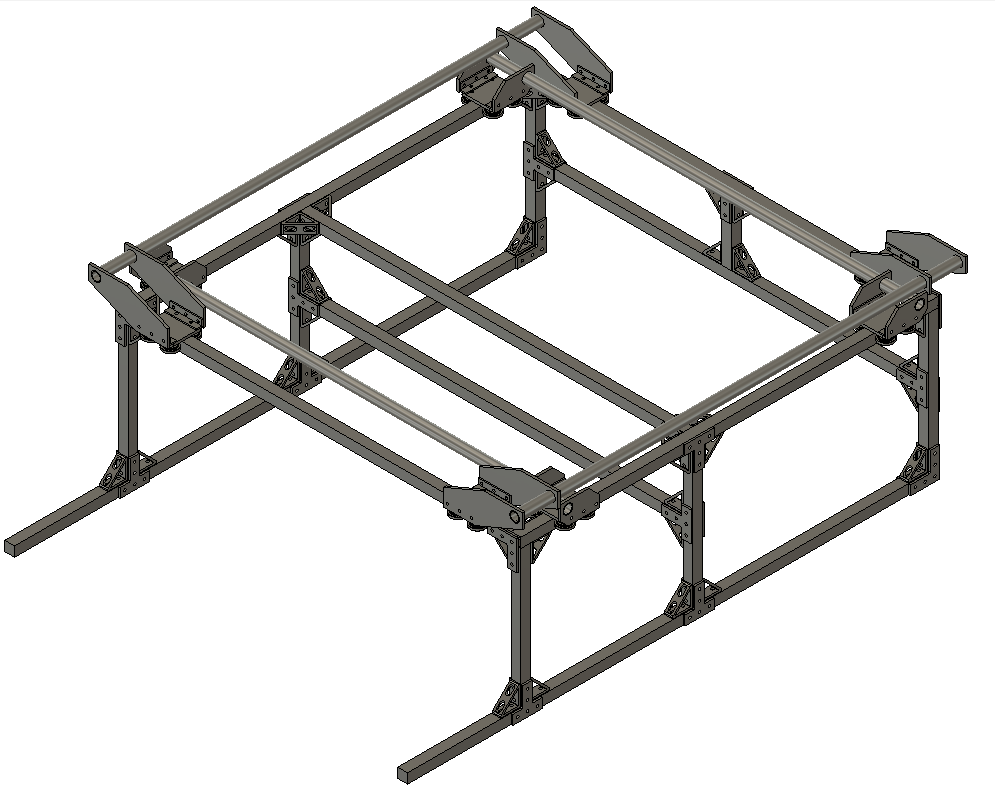

Rollers here

Found in RobotX>Mounting Rail>motorized>“Rollers on design”


This design takes advantage of the 8020 railts to guide the rollers to move in a linear and constrained motion


https://www.andymark.com/categories/belts

Belts possibilities:

https://www.andymark.com/categories/belts


Pulley possibilities:

42 tooth pulley extension here


The rollers within the design were recycled in the second HSI camera mount cart here
