8/31/22 Fabricating and Mounting Minimized Drone landing plates

Colin Szeto

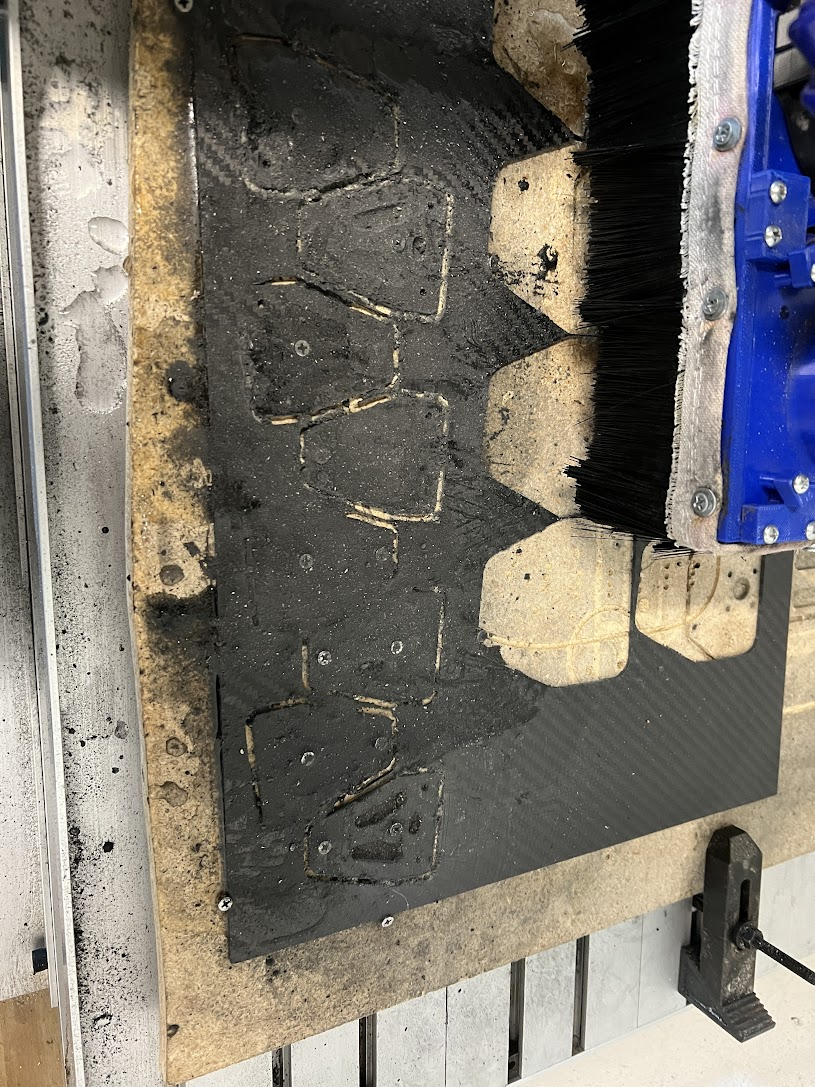

Fabricating the smaller landing plates

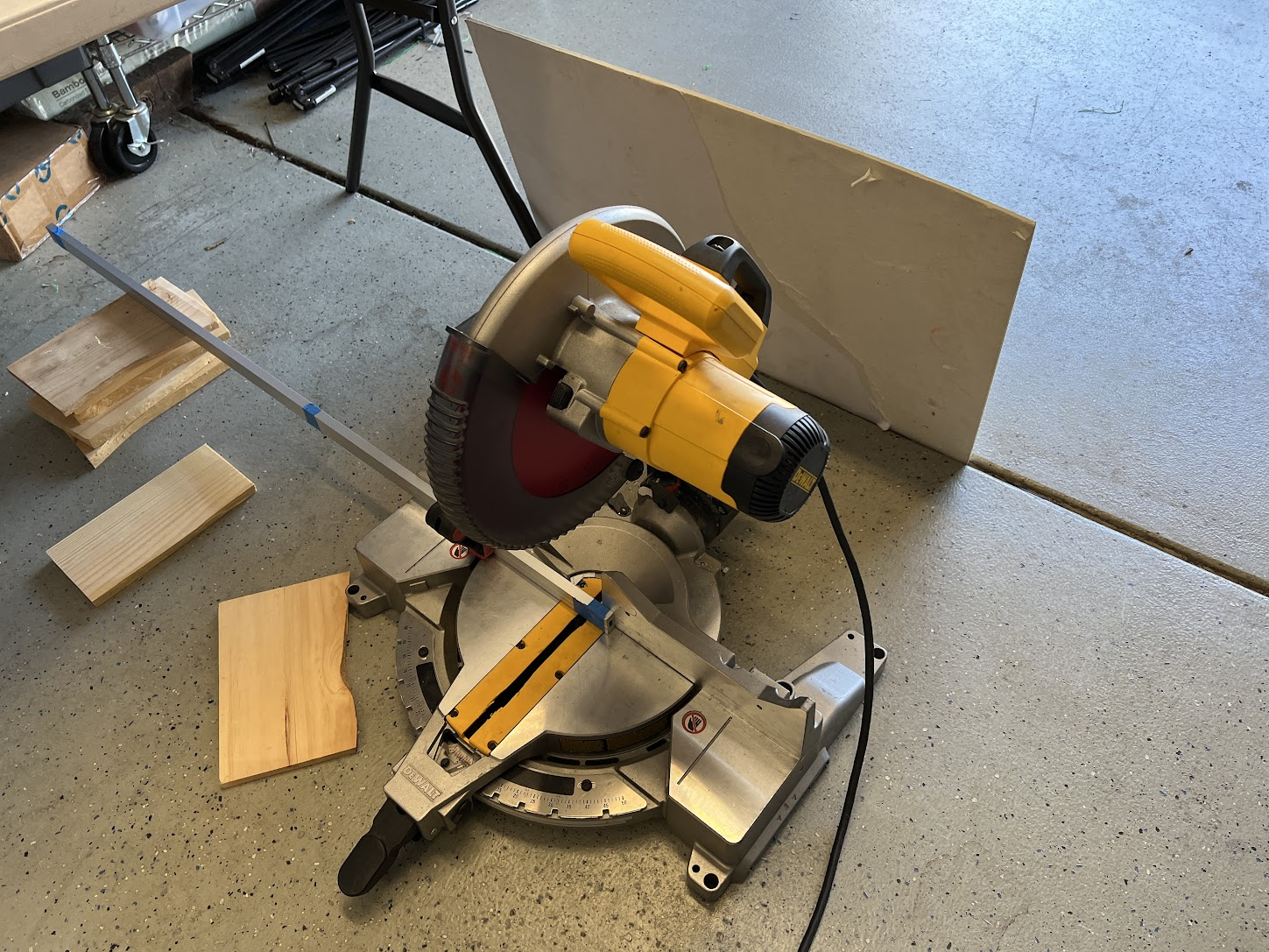

Configuration used for cutting the drone mourning rails. The rails were taped together to get a consistent cut across both pieces. A Backer was set up behind the chop saw to catch all the metal particles

Cut and drilled holes for the quick mounting blocks which integrate with the bottom drone plate

Drill bits used for fabricating the rail blocks:

3/16 for the pin hole

3 mm for the mounting holes

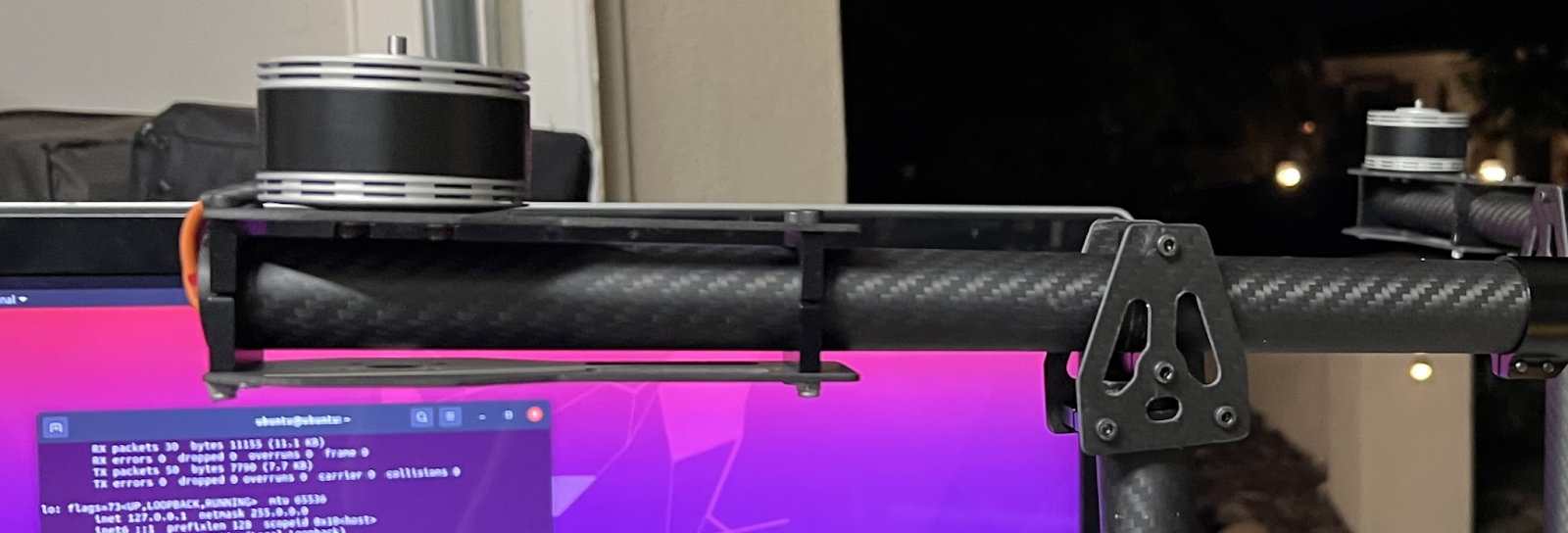

Able to mount the smaller profile landing plates
