9/17/22 Prototyping the custom camera gimbal

 Colin Szeto


Fitment test of the motors and camera on the gimbal


Measuring the depth of the motor threads with inserting bit less than 2mm diameter and marking the top of the bit with sharpie


Allows for the extraction of the bit to be measured


Depth of motor threads about 3 mm

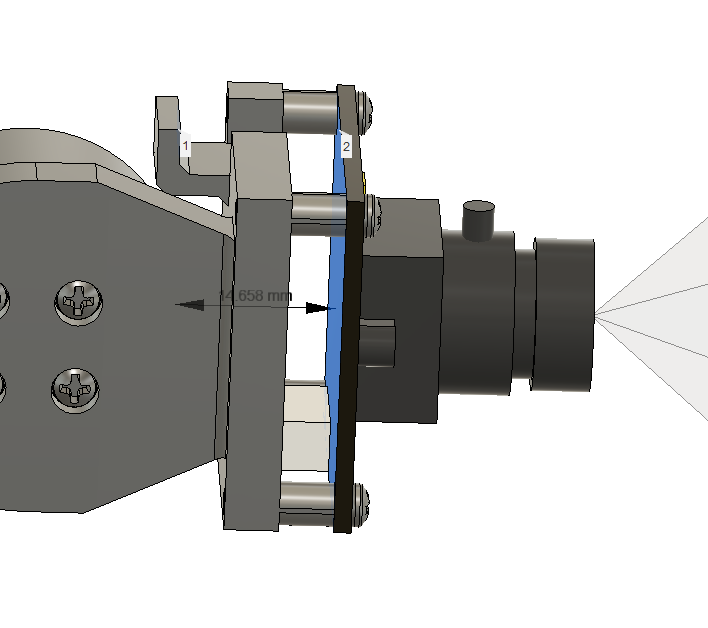

Distance from updated lip to back of the camera is about 15mm


The bend radius of the wire is about 12mm
