9/19/22 BOM Creation for Motor Mount

WAM-V
Written By Team Inspiration

Colin Szeto

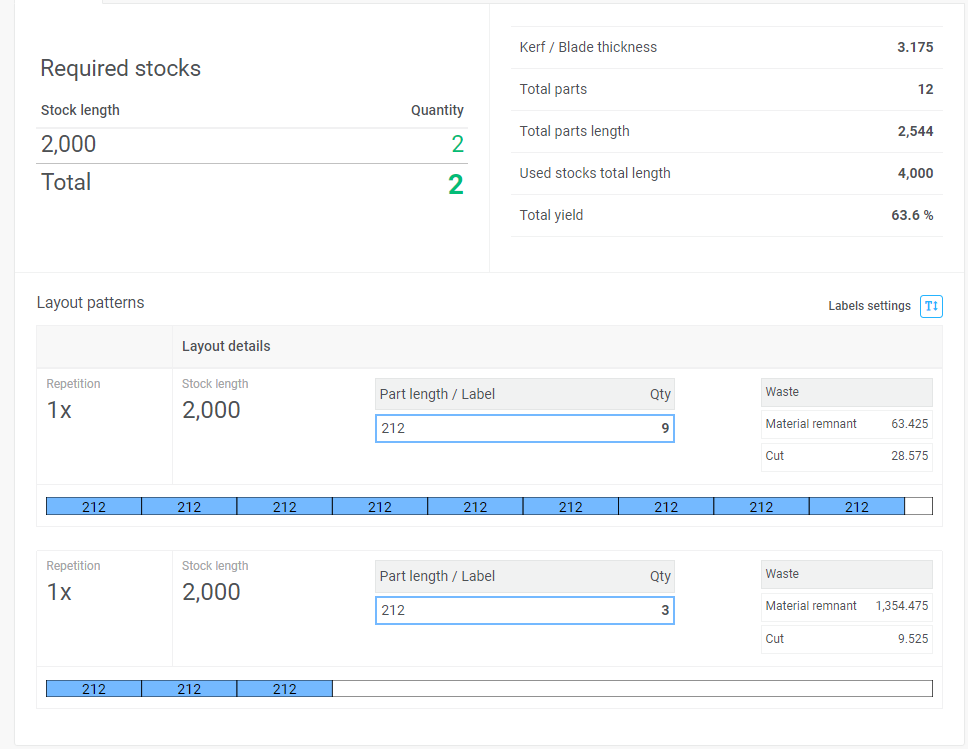

Would need about 2 meter long of threaded rod to cut out all 12 required length of all thread rods


Tool used: here

callouts of required hardware for assembly of the motor guard. Note quantities only reflect 1 motor guard. Need to multiply by 2 for the total part count
