9/19/22 Motor Guard with All Thread

WAM-V
Written By Team Inspiration

Colin Szeto

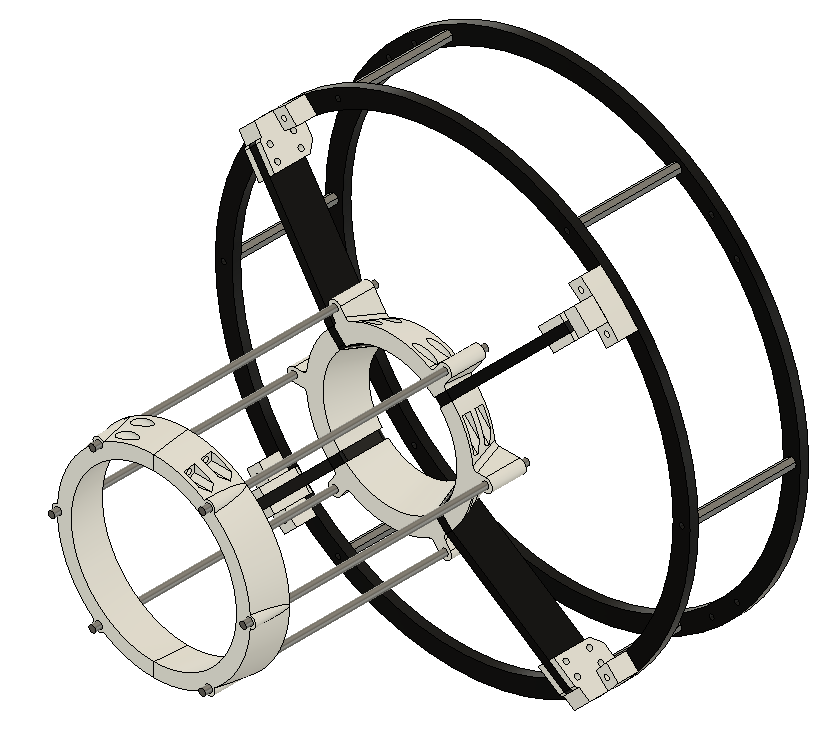

Replaced the airfoil clamps with all thread. This will greatly reduce the complexity of the design. Matured the design to include correct screw holes.

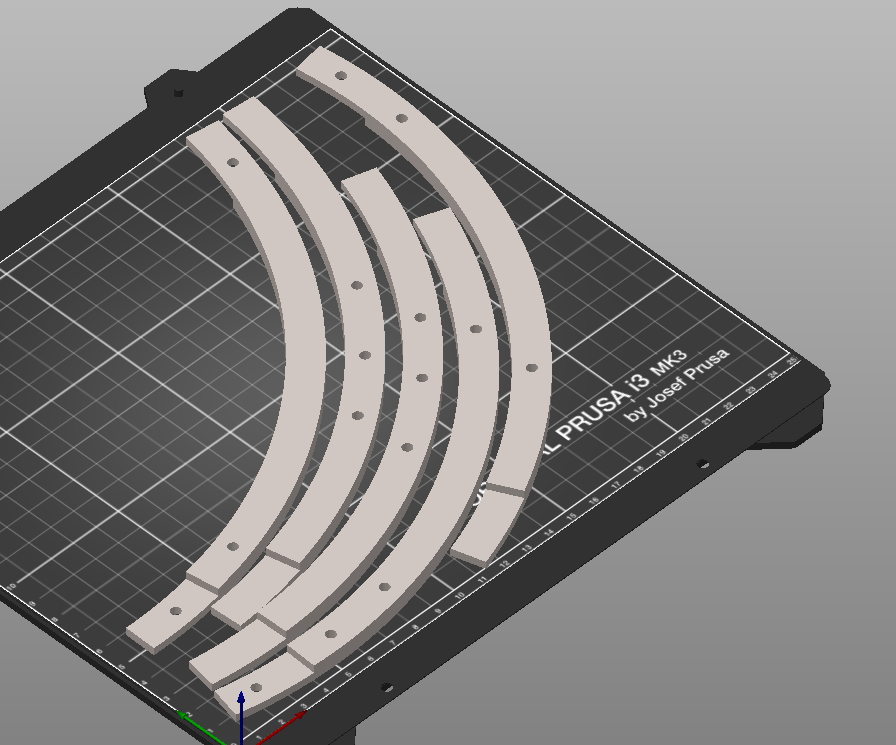

Original 5 piece separation of the ring. This only fits on our Prusa i3 mk3 3d printer and not the Ender v3 3d printer we have access to.

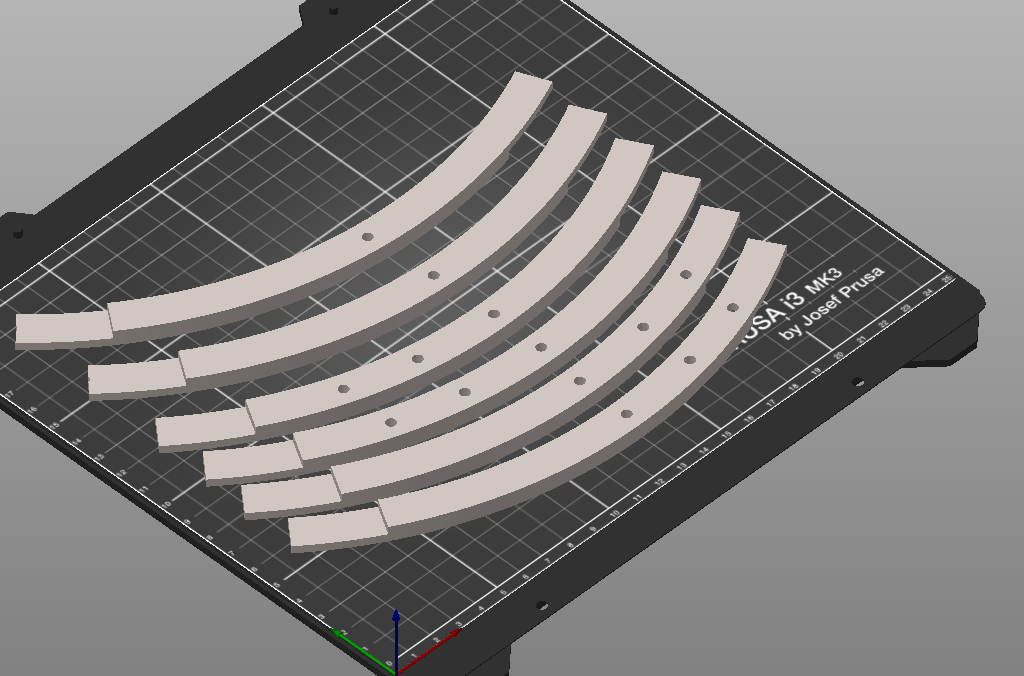

Split up the ring into 5 and 6 pieces. This allows the 13” rings to be printed out on the 3d printers


Team Inspiration
