9/20/22 Assembly of the Motor Guard

Colin Szeto


Saw the interface block had an interference piece which was not accounted for

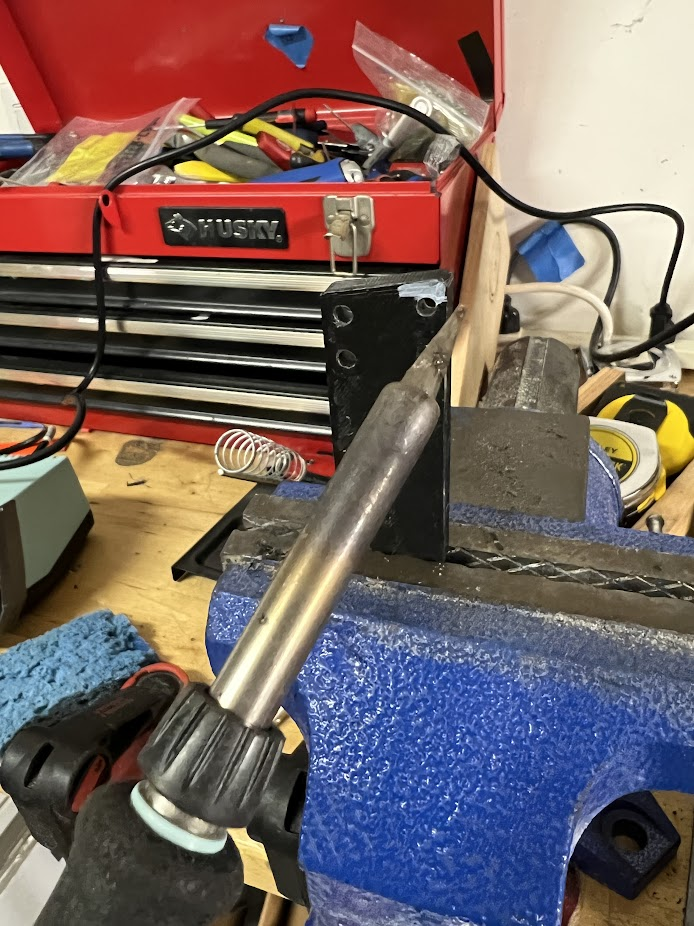

Utilized soldering iron to melt away the plastic on the legs to slot around the extra ledge on the interface piece

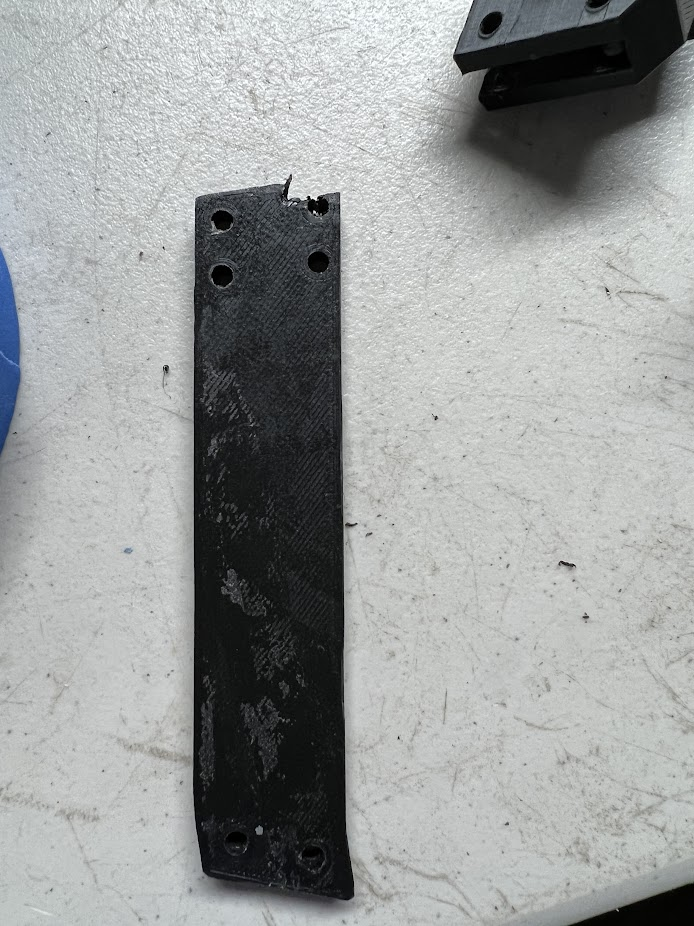

Initial really conservative cut

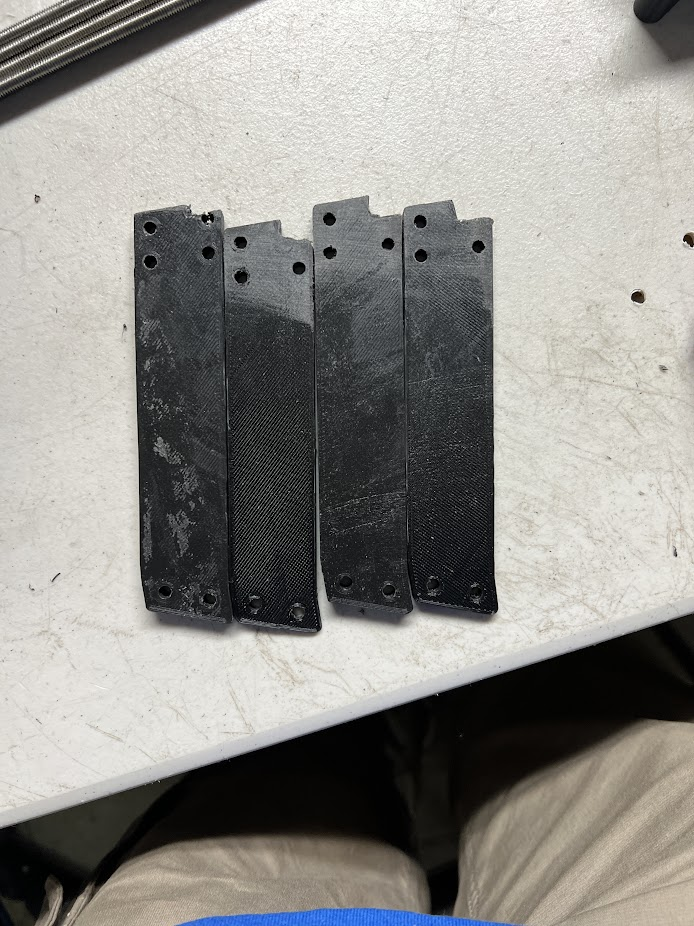

Replicated the cut to all 4 legs

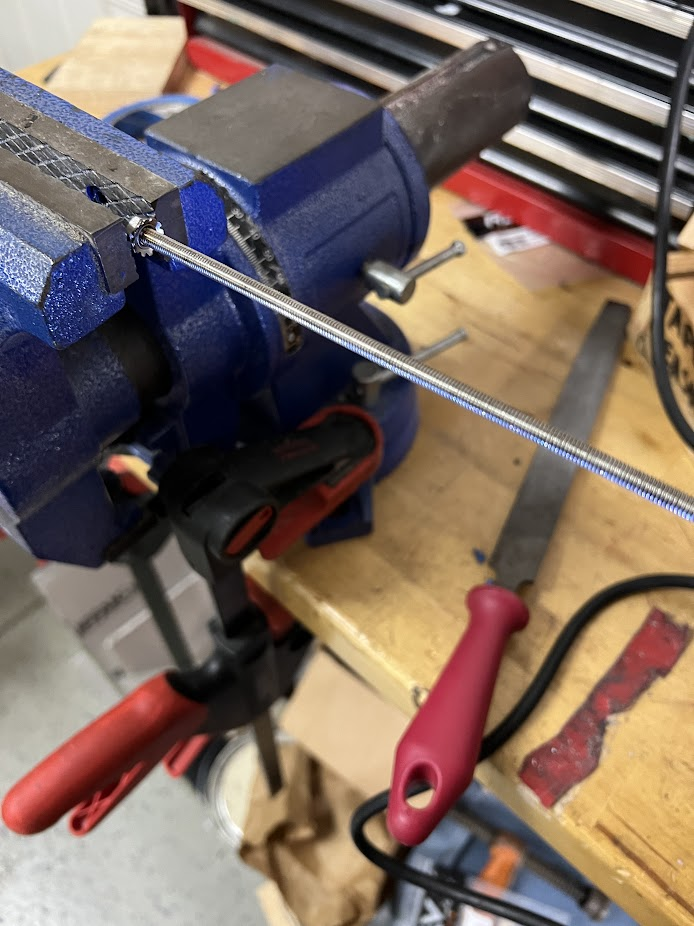

Threading the all thread rods after the cut with a Keps nut. This cleans up the ends of the rod to better access lock nuts in the final design.

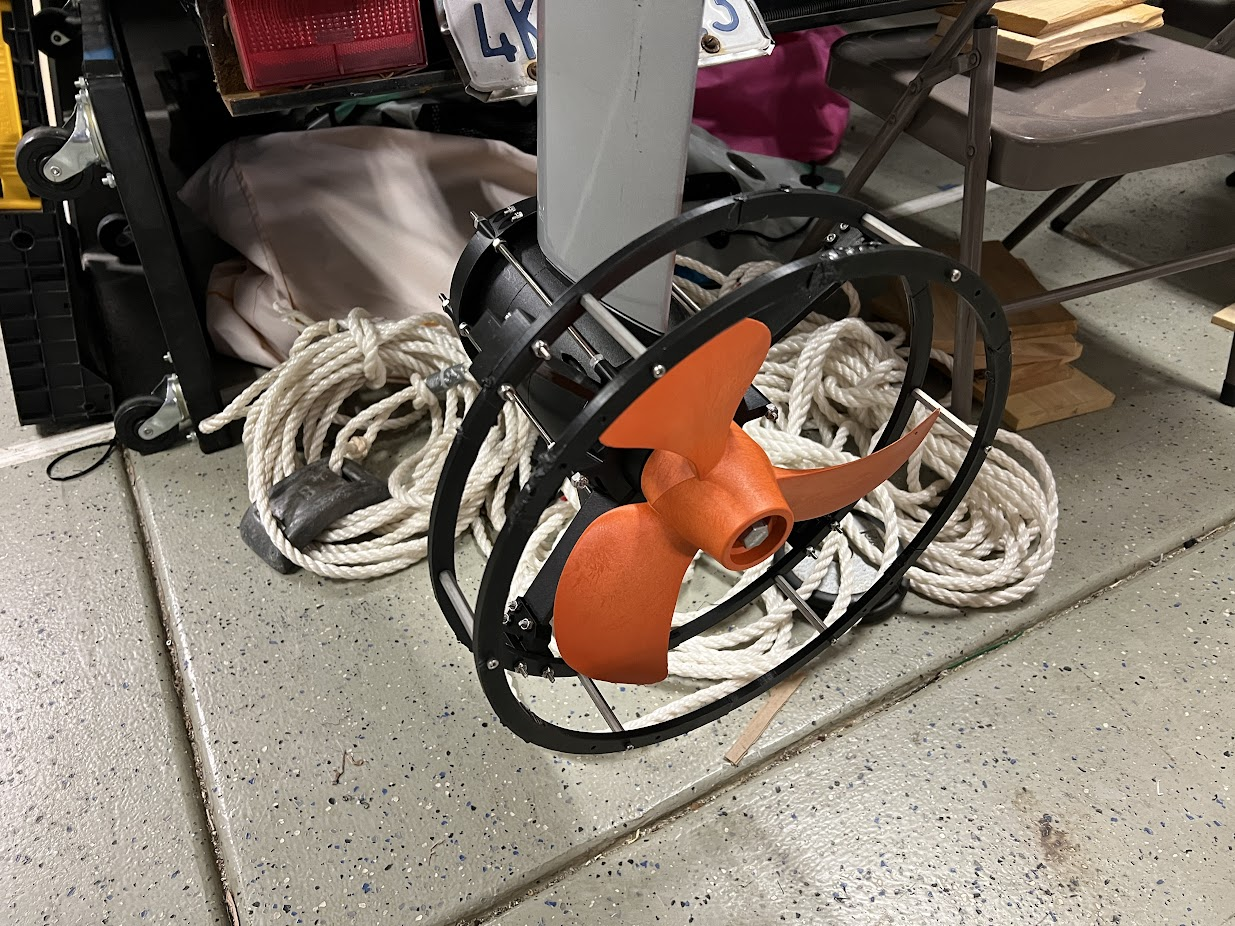

One motor guard down






























The changes of the hardware used were documented on the plans for the motor guard.
