9/20/22 CAD Changes Based Off the Initial Assembly

Colin Szeto

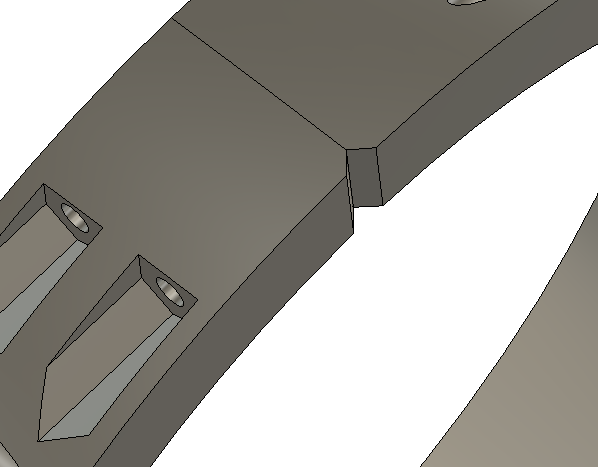

Added in notches to the front ring to enable the ring to not slip on the thrusters

Before

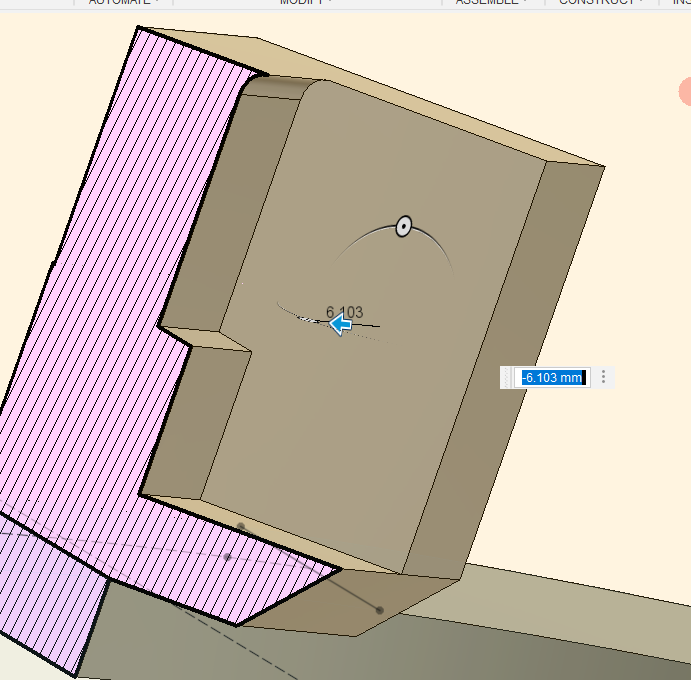

After: Removed corner within the adapter

Changed circular pattern to mirror pattern to allow for clearance. Originally the head clearance and nut were multiplied by a circular pattern, this meant that some screw holes made it difficult to insert a hex to tighten the screw. Using the mirror function ensures that a hex will be able to reach the head of the screws.

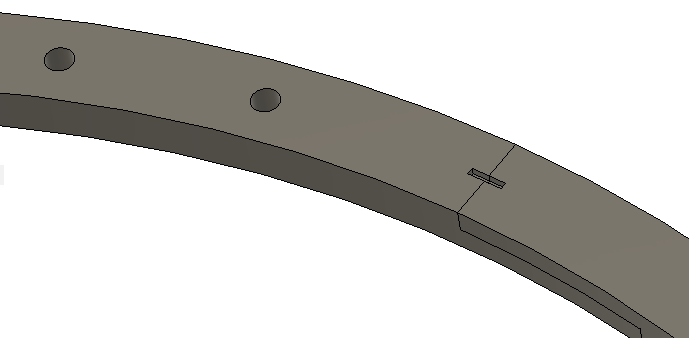

Added in markers on the rings for correlated faces. This will reduce user error and ensure the correct faces are up.
